The T9 IM Hinge is a manufactured assembly component designed for use in shelter product applications. This part is produced under manufacturing agreements with T9.
This is a variation listing — please select the correct SKU for your order.
T9 H11 IM Hinge Assembly
SKU: T9IMHINGEH11Ass
Material: Glass Filled PP
Color: Black
Assembly Contents:
- 1 x IM Hinge Backplate
- 1 x IM Hinge H11
- 1 x Gasket Light Duty Blended EPDM Foam Sheet, Soft, 3/16" Thick - 8647K42
- 3 x screws, McMaster 99512A459, Rounded Head Thread-Forming Screws, Torx Plus, Zinc-Plated Steel, Number 10 Size, 1" Long
T9 H15 IM Hinge Assembly
SKU: T9IMHINGEH15Ass
Material: Glass Filled PP
Color: Black
Assembly Contents:
- 1 x IM Hinge Backplate
- 1 x IM Hinge H15
- 1 x Gasket Light Duty Blended EPDM Foam Sheet, Soft, 3/16" Thick - 8647K42
- 3 x Screws, McMaster 99512A465, Rounded Head Thread-Forming Screws, Torx Plus, Zinc-Plated Steel, Number 10 Size, 1.5" Long

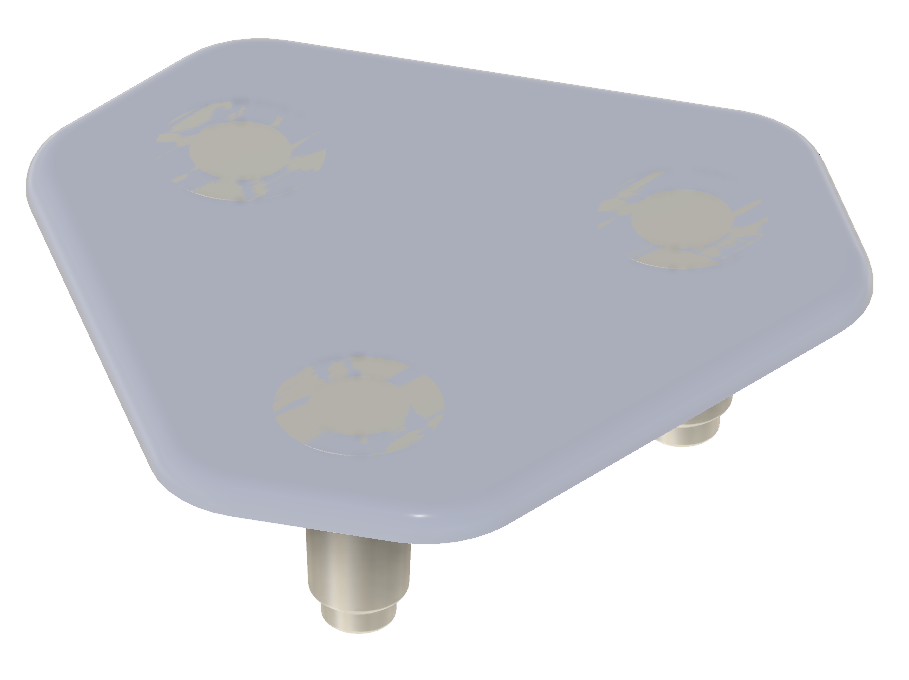

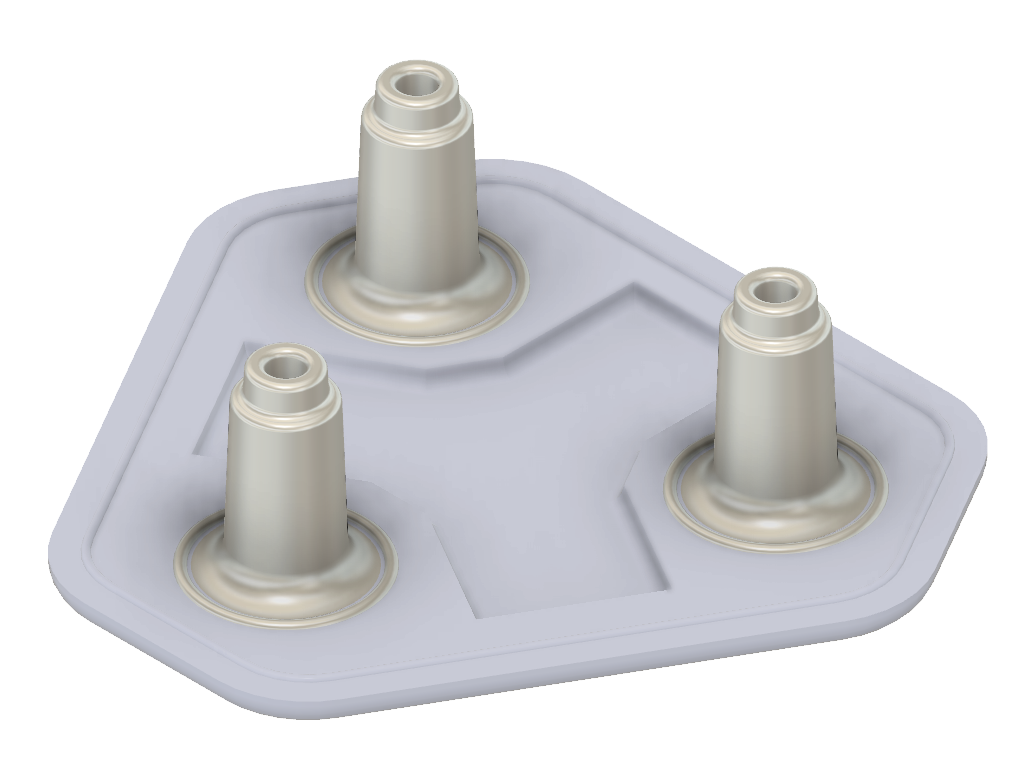

T9 H11/H15 IM Hinge Backplate
SKU: T9HIBackplateAss
Contents:
- Hinge Backplate (injected)
- Foam Gasket (die cut)
- Zip Lock Bag
- Assembly labor (die cut)
Box Labels
NOTES / REVISIONS
2026/05/31 — Reformatted description to match Door Block Family style with clearer variation structure and assembly details.
2026/05/13 — Changed the price of the Hinge Backplate. Added a gasket to the product definition.
2026/04/18 — Created based on quote 260306 and 260421.
