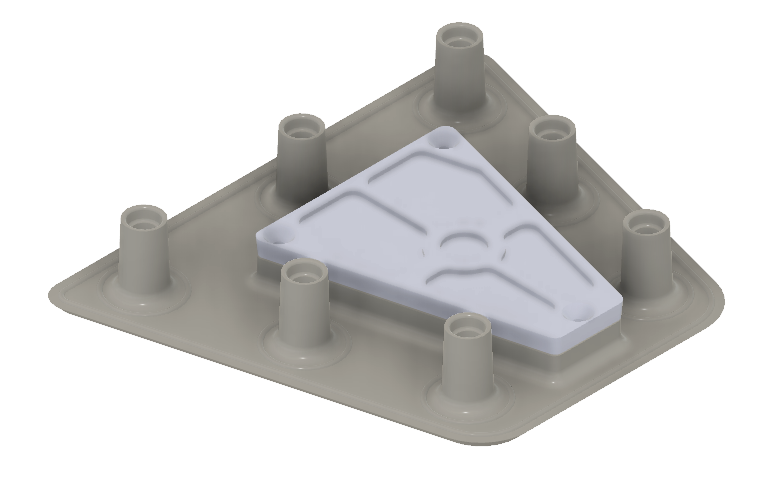

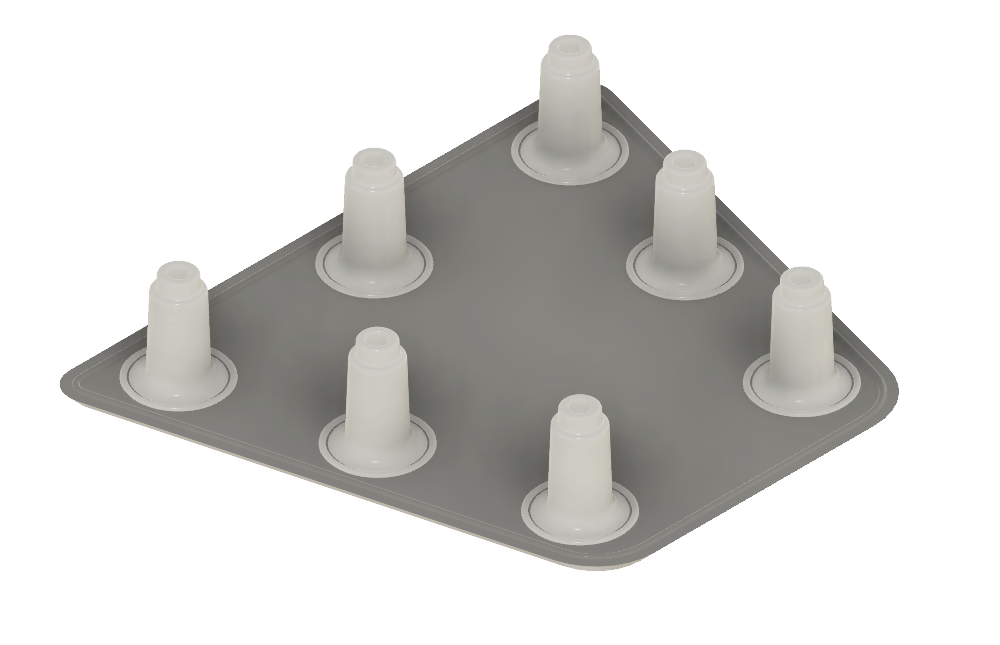

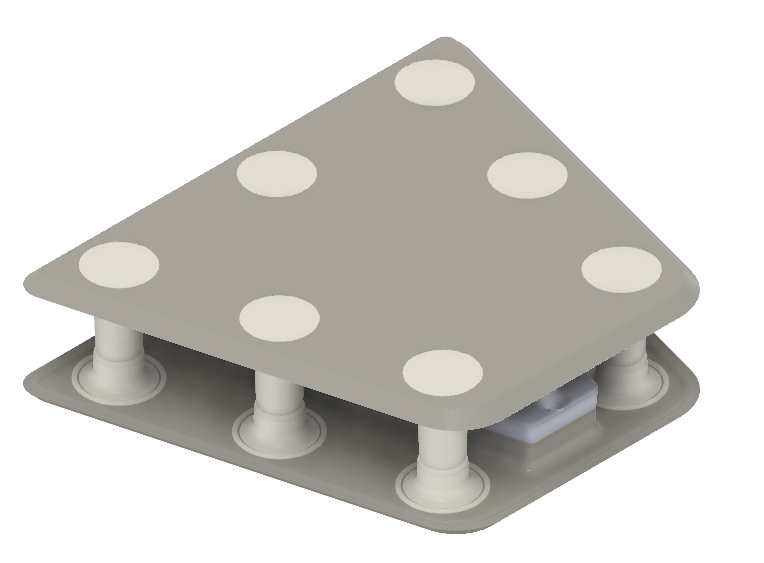

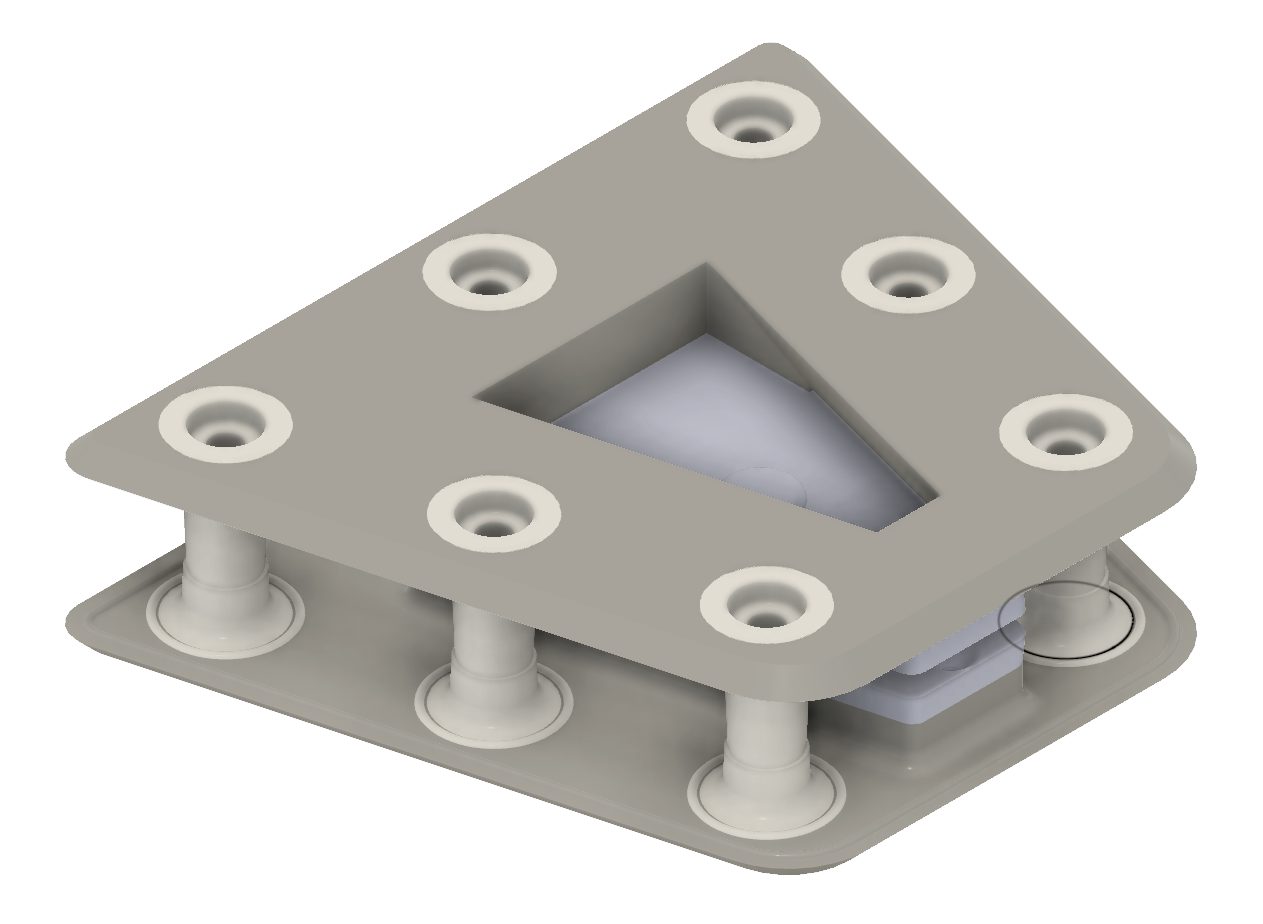

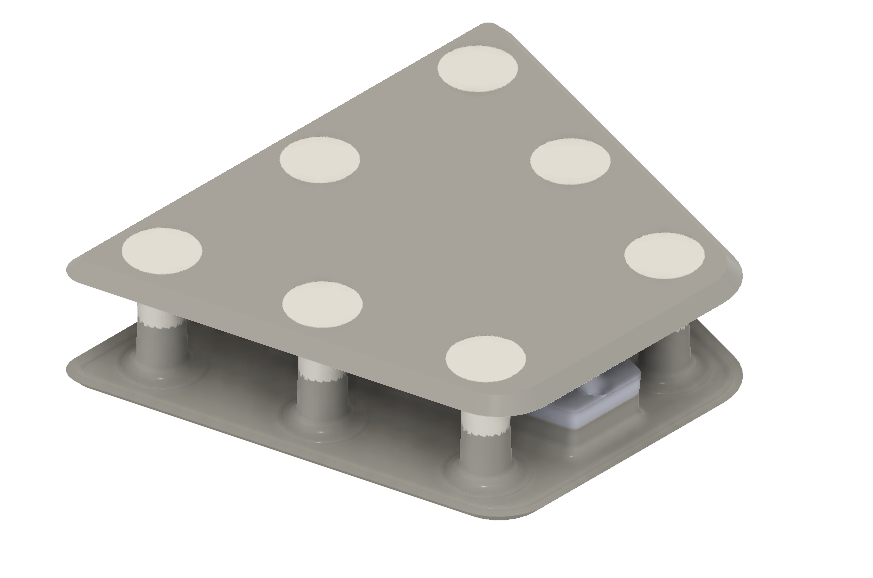

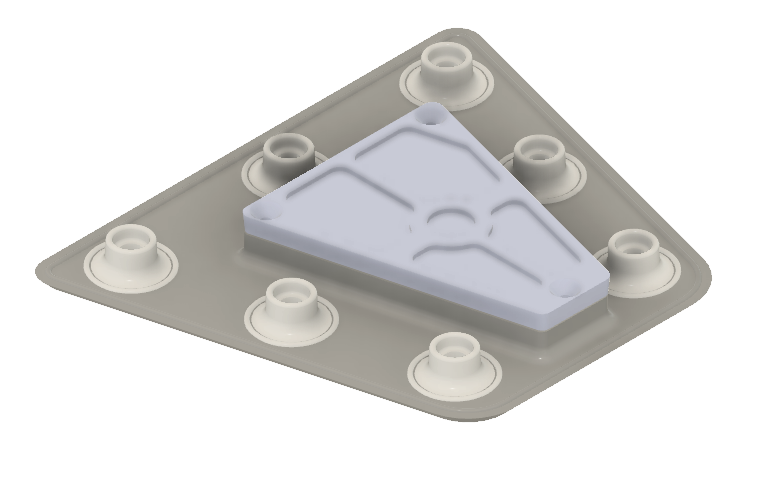

The T9 UNIMOUNT V1/V2 is an assembly component designed for use in shelter product applications. This part is produced under manufacturing agreements with T9.
This is a variation listing — please select the correct SKU for your order.
Material: Glass Filled PP
Color: Black
V2 H11 1.0\" Product Breakdown
- 1 x H11 Top
- 1 x H11/H15 Bottom
- 1 x H11/H15 Backplate
- 3 x #6 1/2\" self taping screws black oxide
- 7 x #10 1.0\" self taping screws zinc-plated steel
- 1 x Gasket 1/4\" thick
V2 H15 1.5\" Product Breakdown
- 1 x H15 Top
- 1 x H11/H15 Bottom
- 1 x H11/H15 Backplate
- 3 x #6 1/2\" self taping screws black oxide
- 7 x #10-24x1.0\" Screw - 96452A246
- 1 x Gasket 1/4\" thick
V2 H11 1.0\" Double Sided Product Breakdown
- 1 x H11 Top (drill holes out to 1/4+ for screws)
- 1 x H11/H15 Bottom
- 1 x H15 Top
- 1 x H11/H15 Bottom
- 6 x #6 1/2\" self taping screws black oxide
- 7 x #10-24x1.0\" Screw - 96452A246
- 1 x Gasket 1/4\" thick (die cut + manual triangle cut)
V1 H11/H15 Version Product Breakdown
- 1 x H15 Top
- 1 x H11/H15 Bottom
- 3 x #6 1/2\" self taping screws black oxide
Box Labels
Unmount V2 H11 1.0\"
Unimount V2 H15 1.5\"
Unimount V1 H11/H15
Double Unimount V2 H11 1.0\"
Double Unimount V2 H15 1.5\"
NOTES / REVISIONS
2026/06/25 — Removed Barbed Inserts (93738A260) from V2 H15 and Double Sided breakdowns (does not belong on this product). Standardized per shopify-product-content guidelines. Added variation disclaimer.
2026/05/31 — Added introduction and reformatted for consistency with other T9 product listings.
2026/05/13 — Updated the double unmount pricing to reflect additional hardware parts and pricing.
2026/05/08 — Added configuration and pricing for double sided unmounts.
2026/03/31 — Added V1 to this listing same price.
2026/03/24 — V2 Added parts breakdown and added screws and gasket. Changed price to reflect new assembly.
2026/02/17 — V2 New part series.
2025/03/17 — V1 We have combined the top and bottom and are now assembling the product for a total price of $5.48. Assembly requires the purchase of McMaster screws.
2024/12/17 — V1 Due to labor inflation we have raised the price of the top from $2.99 to $3.14. and the bottom $1.75 to $1.84.
